  • CNCXG series CNC Pipe bevelling Cutting Machine
CNCXG series CNC Pipe bevelling Cutting Machine

CNCXG series CNC Pipe bevelling Cutting Machine

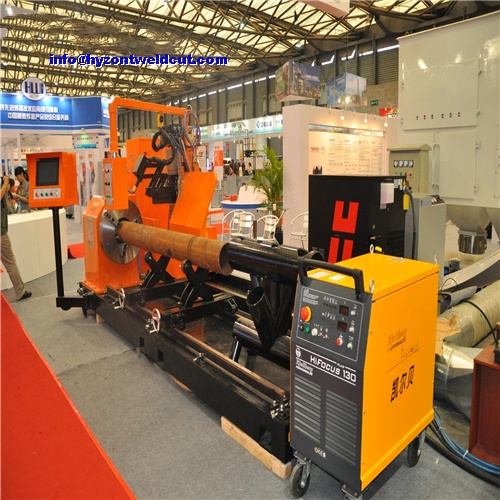

CNCXG series CNC pipe profile cutting machine

CNC pipe profile cutting machine is specially designed equipment for steel pipe 3-D automatic cutting. After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.

Optional items:

5 jaws concentric chuck
Turning roll(cutting pipe diameter can be up to 2500)
Fastpipe/fastframe software
Electric jaw
Electric adjusting bracket
Photoelectric sensor

Technical Specification

Model                                                 CNCXG300       CNCXG600      CNCXG800      CNCXG1250     CNCXG1400   CNCXG1600
Cutting Pipe Diameter (mm)   Φ40-300           Φ60-630          Φ60-800         Φ100-1250      Φ200-1400       Φ200-1600
Pipe Length(mm)                         2000-12000     2000-12000    2000-12000    2000-12000     2000-12000    2000-12000
Cutting Speed (mm/min) Flame: 50-750     Plasma: 50-5800
Cutting Thickness(mm)    Flame: 5-60mm   Plasma:1-50mm
Plasma Max Beveling Angle     ±45°
Flame Max Beveling Angle      ±60°

Basic Components

Pipe Chuck:   3 jaws concentric chuck
Cutting Mode:     Flame and Plasma
Number Of Control Axis:  2-6
Driving Motor:     Panasonic/Yaskawa
Available Plasma Power:  Hypertherm, Kjellberg, Victor, ESAB
Other Data
Operation Language  English or Chinese
Input Power Voltage  3×380V±10% 50Hz / according to user's local condition

Machine Features

Oxy-fuel and plasma cutting and beveling
Maximum cutting pipe diameter 1600mm
3D CuttingTouch screen panel, convenient and fast data inputting,
easy to use and learn
Saving cutting data anytime, able to create technical data base by user
Compatible with Steel Structure designing software, expanding of machine function


Main Application

CNC pipe profile cutting machines are widely used in steel structure, shipbuilding, bridge and steel tower building, petrochemical piping and pressure vessel industry.

Cutting Samples
