CNCXG series CNC Pipe bevelling Cutting Machine
- Product No.：2021913232022

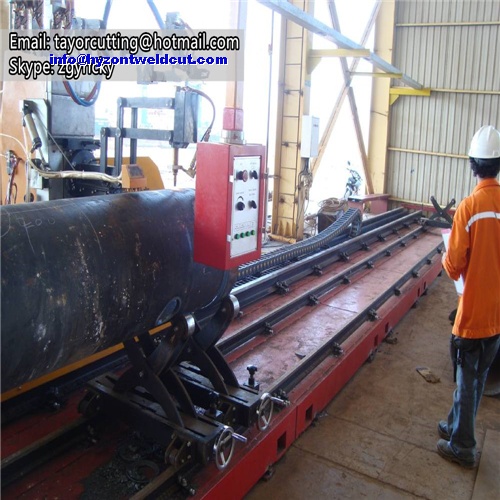

CNCXG series CNC pipe profile cutting machine
CNC pipe profile cutting machine is specially designed equipment for steel pipe 3-D automatic cutting. After input of basic data or leading proper format files, it is capable of automatically processing hole, beveling, grooving, multi-branch and shrimp sections.
Optional items:
5 jaws concentric chuck
Turning roll(cutting pipe diameter can be up to 2500)
Fastpipe/fastframe software
Electric jaw
Electric adjusting bracket
Photoelectric sensor
Technical Specification
Model CNCXG300 CNCXG600 CNCXG800 CNCXG1250 CNCXG1400 CNCXG1600
Cutting Pipe Diameter (mm) Φ40-300 Φ60-630 Φ60-800 Φ100-1250 Φ200-1400 Φ200-1600
Pipe Length(mm) 2000-12000 2000-12000 2000-12000 2000-12000 2000-12000 2000-12000
Cutting Speed (mm/min) Flame: 50-750 Plasma: 50-5800
Cutting Thickness(mm) Flame: 5-60mm Plasma:1-50mm
Plasma Max Beveling Angle ±45°
Flame Max Beveling Angle ±60°
Basic Components
Pipe Chuck: 3 jaws concentric chuck
Cutting Mode: Flame and Plasma
Number Of Control Axis: 2-6
Driving Motor: Panasonic/Yaskawa
Available Plasma Power: Hypertherm, Kjellberg, Victor, ESAB
Other Data
Operation Language English or Chinese
Input Power Voltage 3×380V±10% 50Hz / according to user's local condition
Machine Features
Oxy-fuel and plasma cutting and beveling
Maximum cutting pipe diameter 1600mm
3D CuttingTouch screen panel, convenient and fast data inputting,
easy to use and learn
Saving cutting data anytime, able to create technical data base by user
Compatible with Steel Structure designing software, expanding of machine function
Main Application
CNC pipe profile cutting machines are widely used in steel structure, shipbuilding, bridge and steel tower building, petrochemical piping and pressure vessel industry.

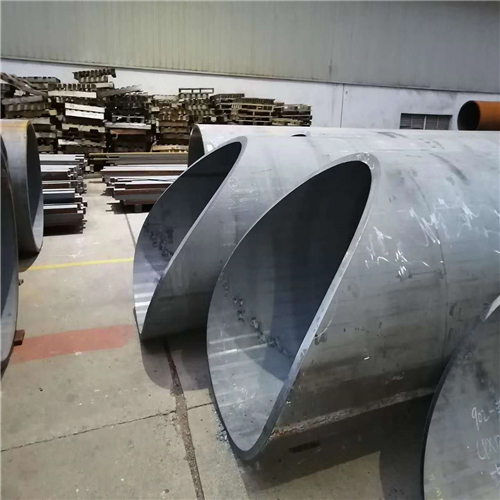

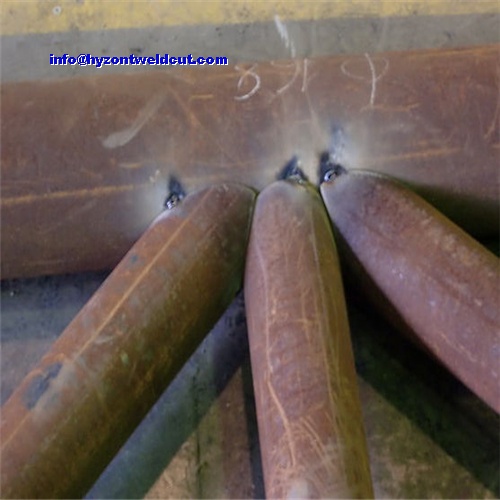

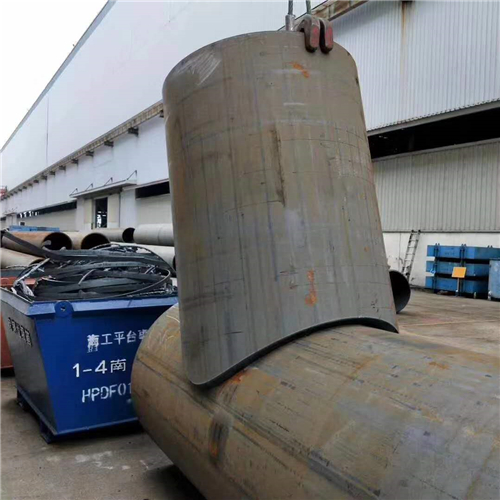

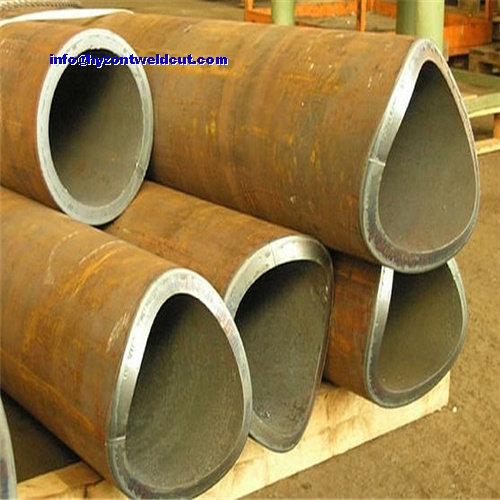

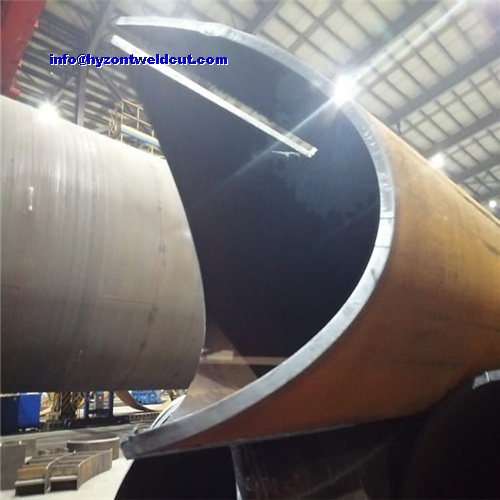

Cutting Samples
