Products Description

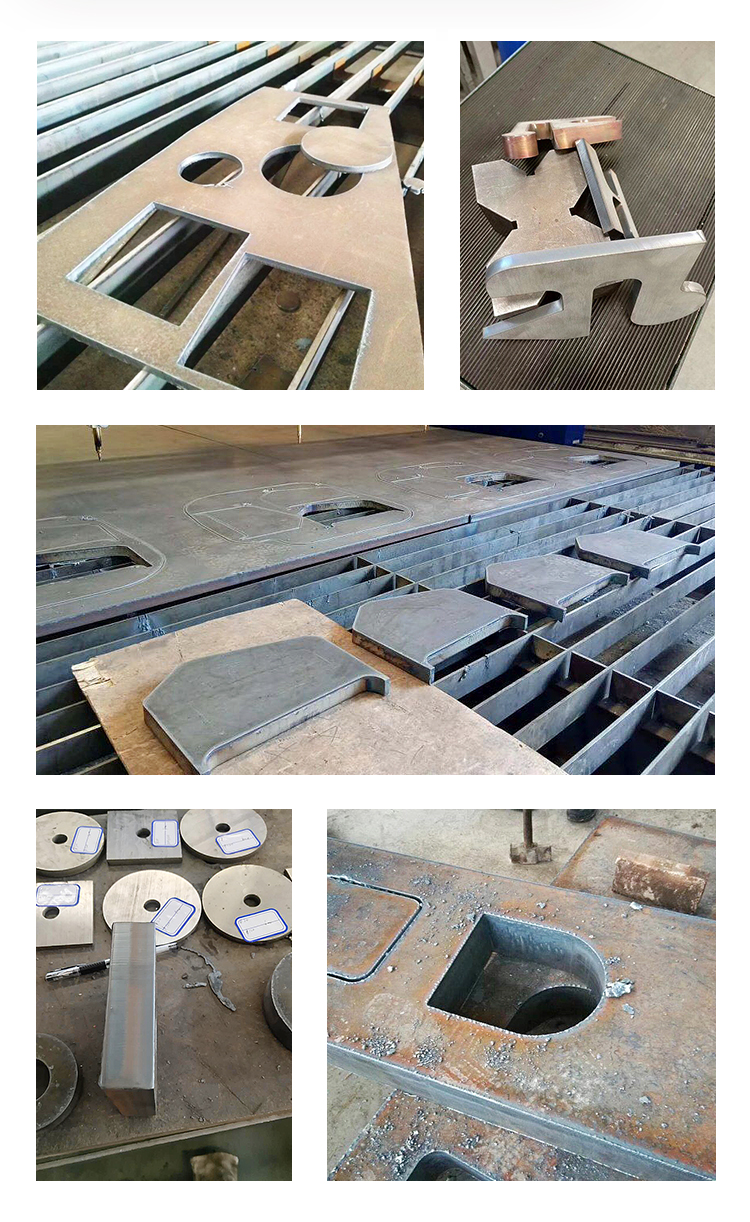

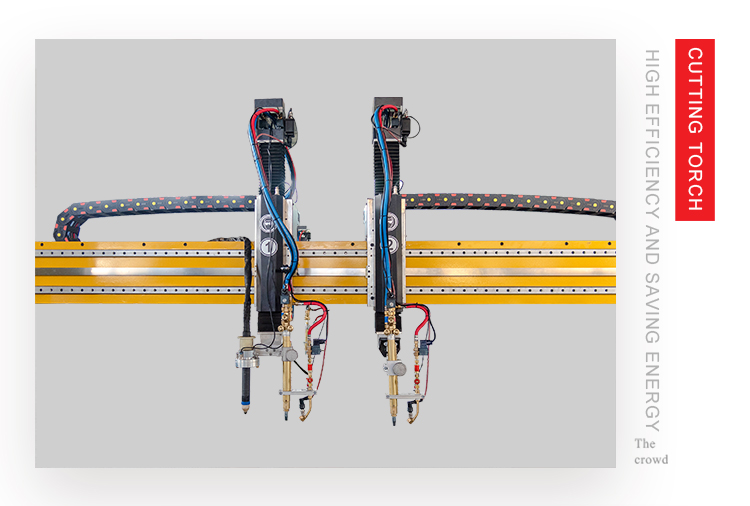

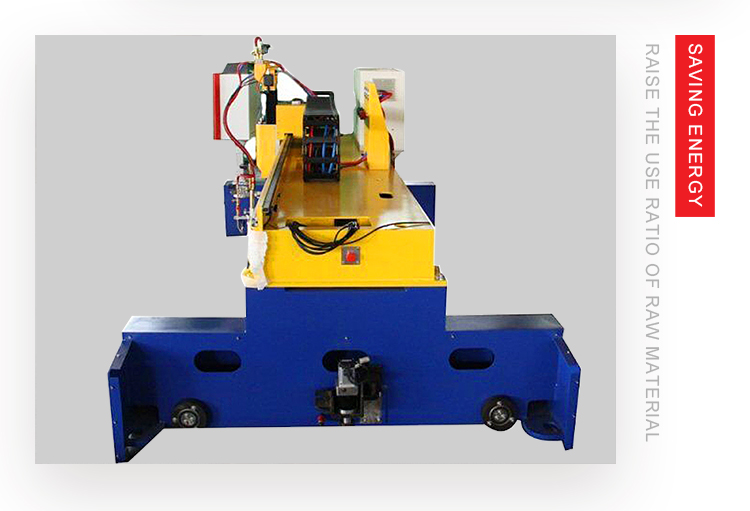

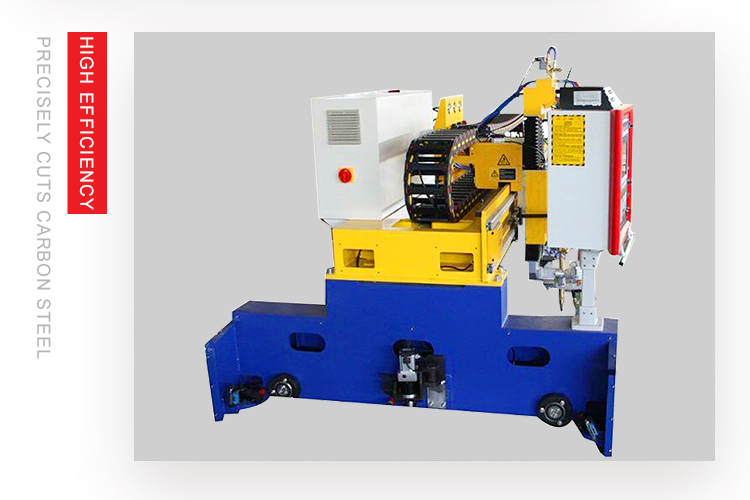

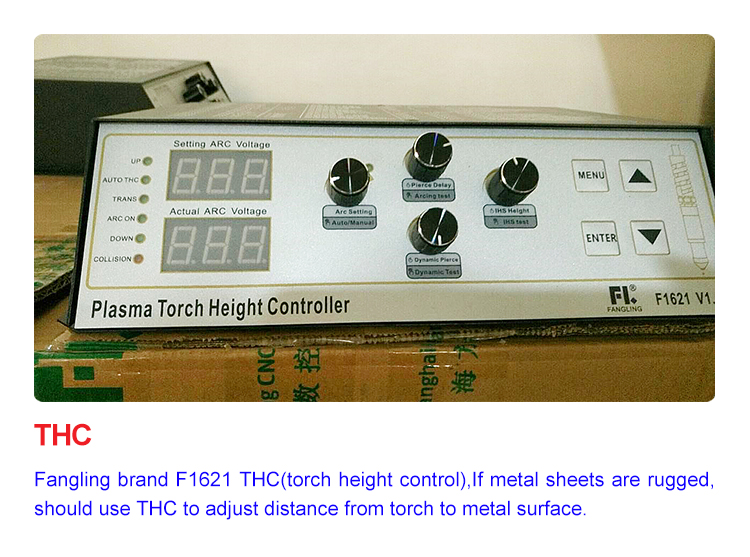

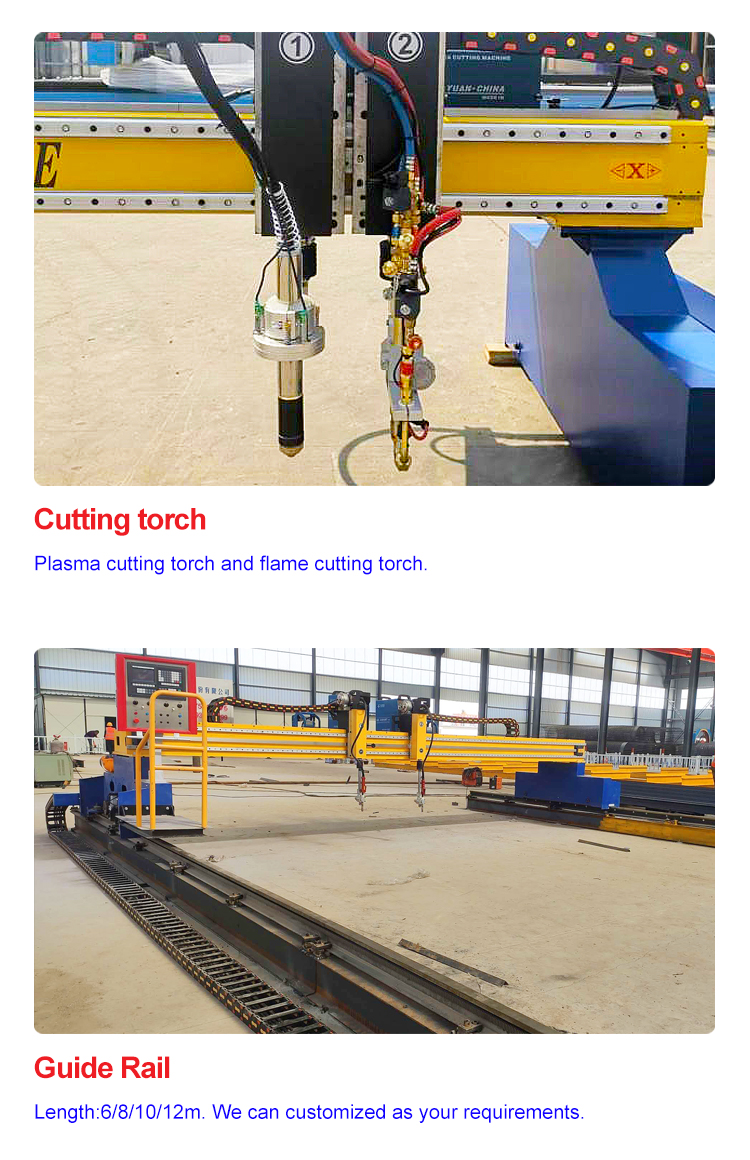

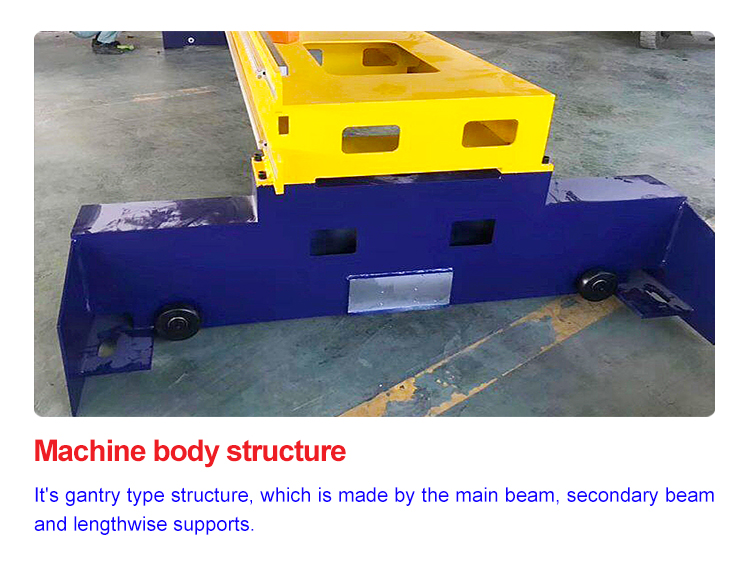

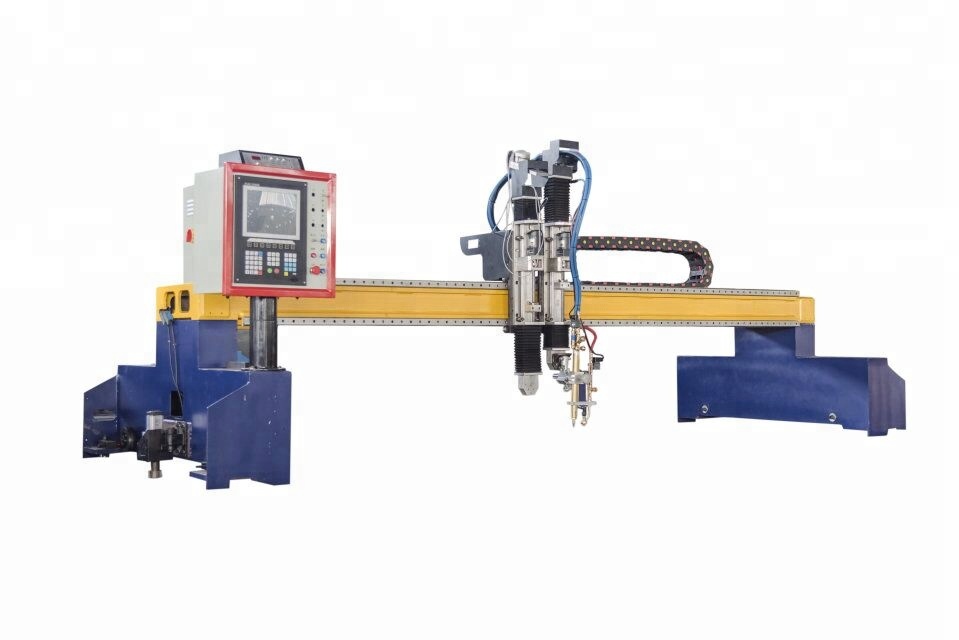

This type of cutting machine is a gantry structure, with a transverse span of 3M, 4m, 5m, 6m, 8m and other specifications. It adopts double-sided drive, with stable operation, good configuration and high efficiency. It can be used for cutting large, medium and small steel plates of various carbon steel, manganese steel, stainless steel and other metal materials. According to the user's requirements, it can also be configured with multiple cutting torches, or it can be configured as a dual-purpose cutting mode of special-shaped cutting and straight strip cutting. In addition, it can be equipped with capacitor or plasma automatic height adjustment system.

Machine dimension (mm)	Maximum 12 meter in width and not limited in length
Effective processing area (mm)	1 meter less in width and 2 meter less in length than machine size
Suggested cutting thickness (mm)	Stainless steel:1-50mm and Carbon steel:6-160mm
Cutting Speed (mm/min)	50-9000
Running speed (mm/min)	12000
Running accuracy	≤0.03mm
Power	220V/ 380V(Optional)
