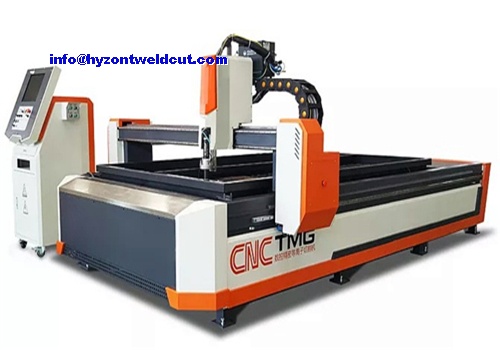

CNCTMG Series of Precision Table type Cutting Machine is integral type cutting equipment with high speed and precision. With precision linear guides and world well-known high definition plasma source such as Hypertherm, Kjellberg, Thermal Dynamics. It shows high guiding accuracy, excellent running stability and high precision cutting ability. It is able to keep the high standard cutting process under long-term and high-intensive working conditions.

Machine Features

Compact and integral type modularization cutting unit, excellent rigidity.

Without foundation preparation, space saving, heavy duty and durable

Precision linear guide driving, low deformation during high speed cutting

Great finish surface, no slag, dispense with secondary treatment

Low use-cost, without special maintenance, friendly operator panel, easy to learn

Utility CNC system, reliable and safeG code and M code readable

DXF/DWG file programming and nestling

USB key data transmission



Technical Specification

Effective Cutting Width (mm): 1500

Effective Cutting Length (mm):3000 to 6000

Flame Cutting Thickness(mm) :5-60mm

Plasma:1-60mm(according to plasma model)

Basic Components

Cutting Mode            Plasma and Oxy-Fuel/Flame

Drive Mode            AC Servo motor, Dual-drive

Cutting Torch Number      Customization

Driving Motor             Panasonic/Yaskawa

CNC Controller           Hypertherm EDGE CONNECT TC; EDGE CONNECT; LKNC-3200

Available Plasma Power:  Hypertherm, Kjellberg, Victor, ESAB

Programming Software:   Fastcam, SmartNest, Hypertherm

Input Power Voltage  3×380V±10% 50HZ/according to user's local condition

Operation Language: Multilanguage



Main Application

CNC Plasma and oxyfuel cutting machines are widely used for the industry of metal fabrication, shipping building, automation, Aerospace Military, Heavy Equipment, Pressure Vessels, Rail Transportation, Bridge Construction, Hardware Machinery, Energy Industry Etc.

​
